DOD Mini Expression

Expression Pedal

MSRP
$113.27
Buy It Now

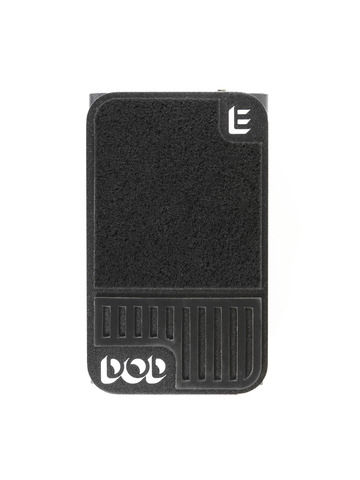

Dod productphoto miniexp top large
Larger Images

The new passive DOD Mini Expression Pedal is just the right size for your pedal board, and your wallet. Rugged all-steel construction and gear drive means that there are no strings to break. Despite its compact form factor it is designed to have the same feel and throw as pedals that are twice its size (and price).

More Details

The Mini Expression Pedal features a TRS (25kΩ)/TS (10kΩ)/RTS (25kΩ) selector, making it flexible to work with most gear with expression pedal inputs. The non-slip rubber pads, and a peerless industrial design by DB Instrument Amp insure a high quality expression pedal that will last the test of time.



****IMPORTANT USAGE NOTE****

The two hex screws on the bottom of the pedal are part of a spring-loaded adjustment mechanism.  If over time you experience slop, loosen these screws slightly and then re-tighten.  This will cause the main engagement gear to re-tighten against the treadle gear.

DO NOT remove these screws or operate the treadle while the screws are loosened.  This can cause the gears to become misaligned and cause the pedal to malfunction.  There are no user adjustable components inside the pedal, under no circumstances should the pedal be opened up.

Features

  • Gear Drive for reliable performance
  • 3-position multi resistance for wide range of compatibility
  • Linear 25kΩ/10kΩ potentiometer
  • Ultra Compact size has same footprint as most pedals

Documentation

Specifications

Dimensions 5.00” (L) x 3” (W) x 2.40” (H) / 127mm (L) x 76mm (W) x 61mm (H)
Weight ~1.1 lbs. / 0.5 kgs.
Output (1) ¼” TRS/TS Instrument
Chassis All Metal
